The Engineering Challenge: Overcoming Heat and Frequency Drift

In high-duty applications, internal heat generation is the primary enemy of system reliability. If your piezo component dissipates too much energy as heat, you face frequency drift, loss of signal integrity, and eventually, permanent depolarization. Whether you are designing deep-sea sonar, industrial ultrasonic welders, or high-precision flow meters, the material's ability to remain stable under stress is the deciding factor for your project's success.

The Solution: Low-Loss Hard PZT Ceramics

Our Hard PZT materials (PZT-4 and PZT-8 series) are specifically engineered for high-power environments. By prioritizing a high mechanical quality factor (Qm) and exceptionally low dielectric loss (Tan \delta), these ceramics ensure that electrical energy is converted into mechanical vibration with maximum efficiency.

• P4 Series (Navy II): The industry standard for sonar and sensing. It offers an excellent balance between coupling efficiency and power stability.

• P8 Series: The preferred choice for extreme power applications (like ultrasonic welding or cleaning) where thermal stability is the critical parameter for longevity.

Key Performance Indicators:

• Minimal Heat Generation: Low dielectric loss prevents thermal runaway during continuous operation.

• High Power Handling: Maintains the d33 charge constant even under high electrical and mechanical loads.

• Long-term Stability: Engineered for applications requiring many years of reliable service without significant frequency drift.

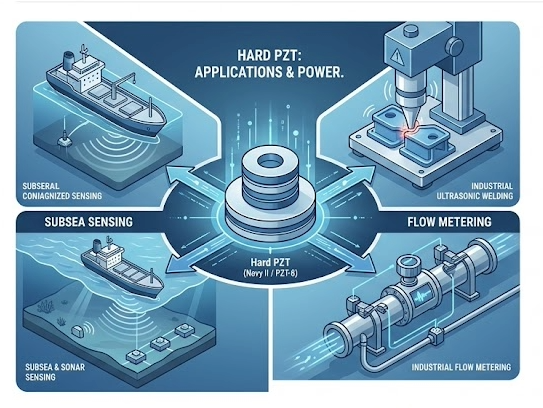

Applications of Hard PZT:

• Subsea & Sonar: High-power transducers for telemetry and imaging.

• Industrial Ultrasound: Precision welding, cutting, and large-scale cleaning.

• Flow Metering: Zero-drift sensors for industrial and utility meters.

The Expert Advantage: From Material to Simulation

Choosing the right PZT-series is only the beginning. To ensure the component fits your specific system requirements, we provide resonance frequency simulations. By adjusting the physical dimensions based on the specific material constants, we eliminate the need for costly trial-and-error prototyping, ensuring a "first-time-right" integration.
