The Engineering Challenge: Detecting Weak Signals and Achieving Nanometer Accuracy

In precision engineering, the challenge is often twofold: either you need to detect incredibly faint acoustic signals, or you need to move a component with nanometer precision. Standard materials often lack the displacement or the voltage-to-charge efficiency required for these tasks. Whether you are building high-resolution medical ultrasound probes or nanometer-scale positioning stages, the material's piezoelectric coupling is the key to performance.

The Solution: High-Coupling Soft PZT Ceramics Our Soft PZT materials (PZT-5A and PZT-5H series) are designed for applications where sensitivity and displacement are the primary requirements. These ceramics feature high piezoelectric charge constants (d33) and high permittivity, making them ideal for converting minimal mechanical energy into measurable electrical signals—and vice-versa.

• P5A Series: The versatile standard for high-fidelity sensing. It offers excellent thermal stability for a soft material, making it the go-to choice for pulse-echo applications and vibration sensors.

• P5H Series: Optimized for maximum displacement and sensitivity. With the highest possible d33 values, it is the preferred material for precision actuators and low-frequency energy harvesting.

Key Performance Indicators:

• Exceptional Sensitivity: High piezoelectric voltage constants ensure clear signal detection in noisy environments.

• Large Displacement: Ideal for micro-positioning and micro-fluidic actuation where high strain is required.

• High Coupling Factors: Maximizes energy conversion efficiency for both sensing and harvesting applications.

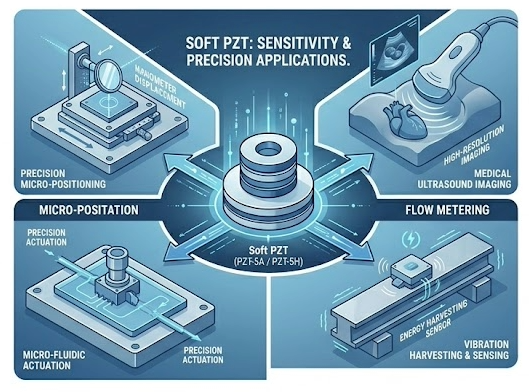

Applications of Soft PZT:

• Medical Imaging: High-resolution ultrasound probes for diagnostic imaging.

• Micro-positioning: Nanometer-scale adjustment of optics, lasers, and sensors.

• Energy Harvesting: Capturing ambient vibrations to power low-energy wireless sensors.

The Expert Advantage: Precision Simulation for Sensitive Designs A high-sensitivity material is only effective if the component's geometry is perfectly tuned to the application. We provide resonance frequency simulations tailored to Soft PZT's unique characteristics. By simulating the precise modal behavior before production, we ensure that your sensors and actuators deliver maximum performance from the very first prototype.

[ Button: Request a Preliminary Simulation ] Not sure if P5A or P5H is the best fit for your precision requirements? [Talk to an Application Engineer]
