Why choose Lead Titanate? (The "Why")

Lead Titanate (PT) is a highly anisotropic material, which makes it fundamentally different from standard PZT. In the world of piezo-acoustics, PT is the "clean" alternative.

• Exceptional Signal Purity: PT resonates almost exclusively in its thickness mode. With near-zero planar coupling, you avoid the "mode-coupling" (radial noise) that often interferes with high-frequency measurements in PZT.

• Thermal Headroom: With a significantly higher Curie temperature than most PZT materials, PT offers a more robust thermal profile, providing the necessary margin in applications where temperature spikes could otherwise cause depolarization.

• High Duty Cycle & Resonance Stability: Standard PZT often suffers from significant self-heating, causing the resonance frequency to drift (up to 40Hz/°C). PT's ultra-low internal losses minimize self-heating, allowing for much higher duty cycles and stable resonance without the need for complex "hill-climbing" driver algorithms.

• Simplified Electronics: PT's lower dielectric constant makes it easier to match with high-frequency electronics, reducing the strain and complexity of your driver circuits.

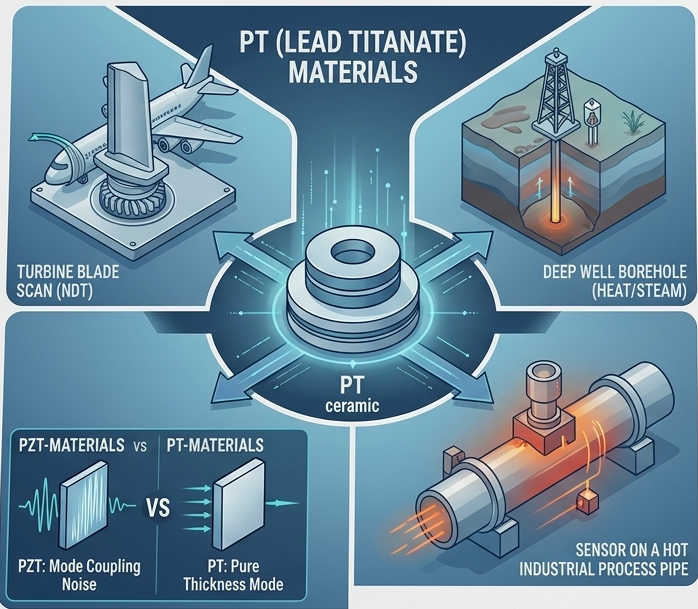

Where is PT used? (The "Where")

PT is typically selected for applications where standard materials reach their physical or electrical limits:

• High-Resolution NDT: Critical for ultrasonic testing where a clean, high-frequency pulse is required to detect microscopic flaws.

• Heat-Intensive & Continuous Sensing: Used in industrial process monitoring or exploration tools where the operating window and duty cycle exceed the stable range of standard PZT.

• High-Frequency Imaging: Ideal for specialist transducers that require "staggered" or ultra-thin elements to operate in the high MHz range.

Your Design, Our Precision We don't just deliver a material; we deliver a component optimized for your specific target. By using resonance simulation, we help you determine the exact dimensions needed to achieve your frequency goals, while you maintain full control over the final application validation.
